| Drive Units | 1 x (12") 300 mm cone long-throw |
| Frequency Response | 35- 120 Hz (+-±3dB) |
| Amplifier Power Output | 300 W |
| Peak Power Output | 450 W |
| Line Input Sensitivity | 200mV for maximum output |
| Crossover Range | 30 - 150 Hz |
| Inputs | Stereo line in (2 x RCA phono) |
| Mono (LFE) line in (RCA phono) | |
| Input Impedance | Line input 10 k |
| LFE 5 kOhms |
- Low stock

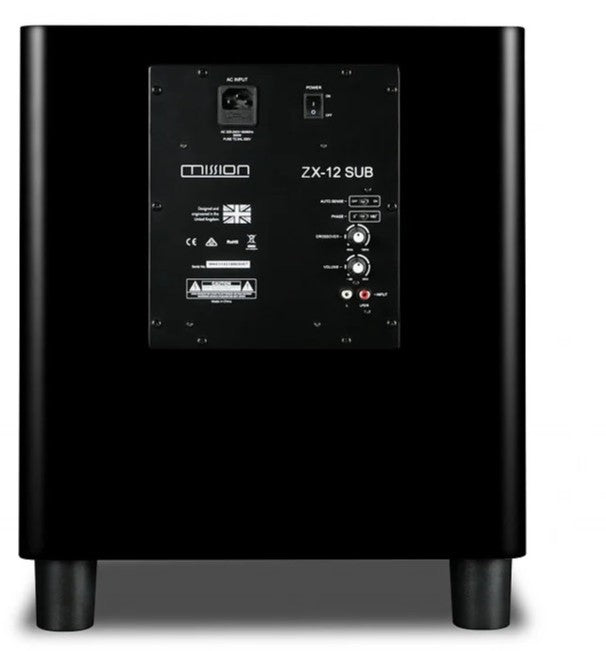

Mission ZX-12
Pickup available at Cinematics Outlet
Usually ready in 24 hours
Pickup available,
Cinematics Outlet
Pickup available, usually ready in 24 hours
Cinematics - Home Cinema Professionals
Showroom # 2, Plot 7E, Lane 8 Zamzama Commercial, DHA Phase V
Karachi 75500
Pakistan
Subwoofer
Perfect for a ZX Series home-theatre system or musical bass extension in 2-channel applications, the ZX-12 SUB utilises a 12-inch (300mm) long throw bass driver of astounding bass impact. Based on the same award-winning system found in the best-selling QX-12 SUB, the ZX-12 SUB offers a premium high-gloss paint finish to perfectly match the aesthetics of the stunning ZX Series loudspeakers.
The sealed box design provides fast and intensive bass response, while the employment of a custom designed balanced drive Class-D power amplifier further provides power and speed that is usually unheard of in subwoofers of this price-class.
In addition, a variable crossover frequency control provides seamless integration into any system, offering incredible low-frequency punch, power and substance for all of your music and movies applications.
| Signal-to-noise Ratio (s/n) | ≥ 85 dB |
| Avg. Max Output @1m | 118 dB |
| Features | Phase inversion, auto on-off |
| Dimensions | Height: (420+58) mm (with feet) |
| Width: 400 mm | |
| Depth: (450+15) mm | |
| Net Weight | 23 kg |
